直线导轨丝杠的工作原理是什么?

来源:http://www.jngongrun.com/ 日期:2022-02-18 发布人:gongrun

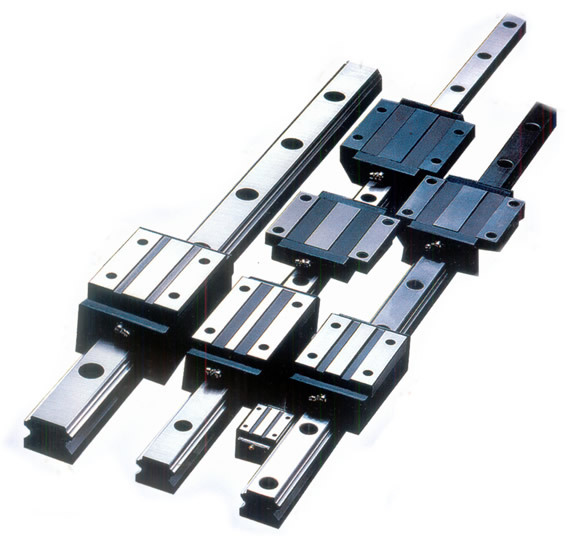

直线导轨的工作原理可以理解为是一种滚动导引,是由钢珠在滑块跟直线导轨之间无限滚动循环, 从而使负载平台沿着导轨轻易的高精度线性运动,并将摩擦系数降至平常传统滑动导引的五十分之一,能轻易地达到很高的定位精度。

The working principle of the linear guide rail can be understood as a kind of rolling guidance, which is an infinite rolling cycle between the sliding block and the linear guide rail by the steel ball, so that the load platform can easily move along the guide rail with high-precision linear motion, and reduce the friction coefficient to one fiftieth of the ordinary traditional sliding guidance, which can easily achieve high positioning accuracy.
滑块跟导轨间末制单元设计,使线形导轨同时承受上下左右等各方向的负荷,特定的回流系统及精简化的结构设计让HIWIN的线性导轨有更平顺且低噪音的运动。滑块-使运动由曲线转变为直线。新的导轨系统使机床可获得快速进给速度,在主轴转速相同的情况下,快速进给是直线导轨的特点。
The final unit design between the sliding block and the guide rail makes the linear guide rail bear the load in the up, down, left, right and other directions at the same time. The specific reflux system and the refined and simplified structural design make the linear guide rail of HIWIN move more smoothly and with low noise. Slider - converts motion from a curve to a straight line. The new guide rail system enables the machine tool to obtain rapid feed speed. Under the condition of the same spindle speed, rapid feed is the characteristic of linear guide rail.
直线导轨与平面导轨一样,有两个基本元件;一个作为导向的为固定元件,另一个是移动元件。由于直线导轨是标准部件,对机床制造厂来说.要做的只是加工一个安装导轨的平面和校调导轨的平行度。当然,为了保证机床的精度,床身或立柱少量的刮研是必不可少的,在多数情况下,安装是比较简单的。作为导向的导轨为淬硬钢,经精磨后置于安装平面上。
Like plane guide rail, linear guide rail has two basic elements; One as a guide is a fixed element, and the other is a moving element. As the linear guide rail is a standard part, for the machine tool manufacturer, all it needs to do is process the plane of an installation guide rail and adjust the parallelism of the guide rail. Of course, in order to ensure the accuracy of the machine tool, a small amount of scraping and grinding of the bed or column is essential. In most cases, the installation is relatively simple. The guide rail as a guide is made of hardened steel and placed on the installation plane after fine grinding.
与平面导轨比较,直线导轨横截面的几何形状,比平面导轨复杂,复杂的原因是因为导轨上需要加工出沟槽,以利于滑动元件的移动,沟槽的形状和数量,取决于机床要完成的功能。例如:一个既承受直线作用力,又承受颠覆力矩的导轨系统,与仅承受直线作用力的导轨相比.设计上有很大的不同。
Compared with the plane guide rail, the geometry of the cross section of the linear guide rail is more complex than the plane guide rail. The reason for the complexity is that the guide rail needs to be processed with grooves to facilitate the movement of sliding elements. The shape and quantity of grooves depend on the functions to be completed by the machine tool. For example, the design of a guide rail system that bears both linear force and overturning moment is very different from that of a guide rail that only bears linear force.
