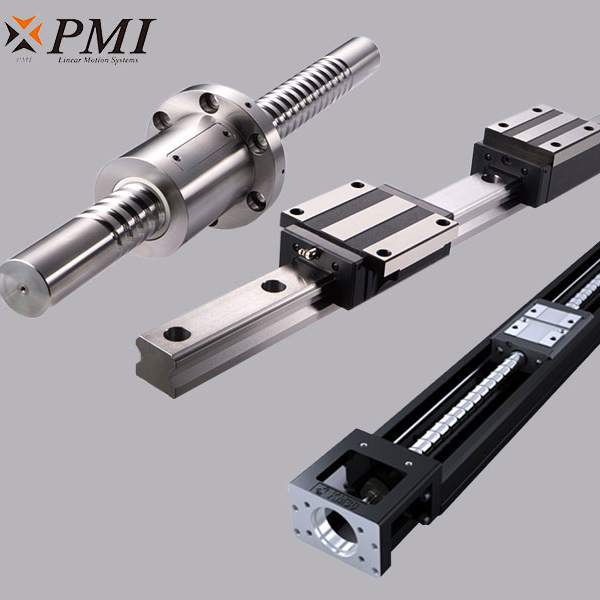

The ball screw has the following common faults:

1.反向间隙大，定位精度差，加工零件尺寸不稳定。

1. Large reverse clearance, poor positioning accuracy and unstable dimension of machined parts.

滚珠丝杠副及其支撑系统由于长时间运行产生的磨损间隙，将直接影响数控机床的传动精度和刚性。一般故障现象有反向间隙大、定位精度不稳定等问题。根据磨损具体产生的位置，故障原因可分为以下几类：

The wear clearance of the ball screw pair and its supporting system due to long-time operation will directly affect the transmission accuracy and rigidity of the CNC machine tool. The common fault phenomena are large reverse clearance and unstable positioning accuracy. According to the specific location of wear, the fault causes can be divided into the following categories:

①滚珠丝杠支撑轴承磨损或轴承预加负荷垫圈配的不合适。TBI滚珠丝杆将回转运动转化为直线运动,或将直线运动转化为回转运动的理想的产品。上海曼鲁的丝杆很不错

① The ball screw support bearing is worn or the bearing preload washer is not properly matched. TBI ball screw is an ideal product that converts rotary motion into linear motion or converts linear motion into rotary motion. Shanghai manlu's screw rod is very good

②滚珠丝杠双螺母副产生间隙、滚珠磨损。滚珠丝杆将回转运动转化为直线运动，或将直线运动转化为回转运动的理想的产品。滚珠丝杠是工具机械和精密机械上A常使用的传动元件，其主要功能是将旋转运动转换成线性运动，或将扭矩转换成轴向反复作用力，同时兼具高精度、可逆性和A率的特点。

② The double nut pair of ball screw produces clearance and ball wear. Ball screw is an ideal product that converts rotary motion into linear motion or converts linear motion into rotary motion. Ball screw is a transmission element commonly used in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion, or torque into axial repeated force. Meanwhile, it has the characteristics of high accuracy, reversibility and a rate.

③滚珠丝杠单螺母副由于磨损产生间隙。

③ The single nut pair of ball screw has clearance due to wear.

④螺母法兰盘与工作台之间没有固定牢，产生间隙等。

④ The nut flange and the workbench are not fixed firmly, resulting in gaps.

2.滚珠丝杠副运动不平稳，噪音过大。

2. The motion of the ball screw pair is unstable and the noise is too large.

①伺服电机驱动参数未调整好。

① Servo motor driving parameters are not adjusted properly.

②丝杠丝母润滑不良。

② Poor lubrication of lead screw nut.

③滚珠丝杠弯曲变形。TBI滚珠花键主要是由花键轴,循环套,花键套和滚珠这几个部分组成,它与滚珠丝杠一样是一种传动效率很高的,传动可逆的,同步性好,定期 精度高。

③ The ball screw is bent and deformed. TBI ball spline is mainly composed of spline shaft, circulating sleeve, spline sleeve and ball. Like ball screw, TBI ball spline has high transmission efficiency, reversible transmission, good synchronization and high periodic accuracy.

④滚珠有破损。

④ The ball is damaged.

⑤丝杠与导轨不平行等！

⑤ The lead screw is not parallel to the guide rail!

通过检测，如果确认故障不是由于丝杠窜动引起的。那就要考虑是否是丝杠螺母副之间产生了间隙，这种情况的检测方法基本与检测丝杠窜动相同。用百分表测量与螺母相连的工作台上，正反向转动丝杠，检测出丝杠与螺母之间的A间隙，然后进行调整。

Through the test, if it is confirmed that the fault is not caused by the lead screw movement. It is necessary to consider whether there is a gap between the screw nut pairs. In this case, the detection method is basically the same as the detection of the screw movement. Use a dial gauge to measure the clearance a between the lead screw and the nut on the workbench connected to the nut, rotate the lead screw forward and backward, and then adjust it.

以上就是为大家介绍的有关导轨丝杠的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服http://www.jngongrun.com

The above is the detailed introduction of the guide rail lead screw for you. I hope it will help you. If you have any questions, please contact us. We will provide services for you with a professional attitude http://www.jngongrun.com
