在现代化工业体系中，直线导轨与滚珠丝杠作为核心传动组件，共同构建起高精度机械运动的基石。两者虽功能各异，却在数控机床、自动化设备、半导体制造等领域形成互补关系，推动着精密加工技术的持续突破。

　　In the modern industrial system, linear guides and ball screws serve as the core transmission components, jointly building the cornerstone of high-precision mechanical motion. Although the two have different functions, they complement each other in fields such as CNC machine tools, automation equipment, and semiconductor manufacturing, driving continuous breakthroughs in precision machining technology.

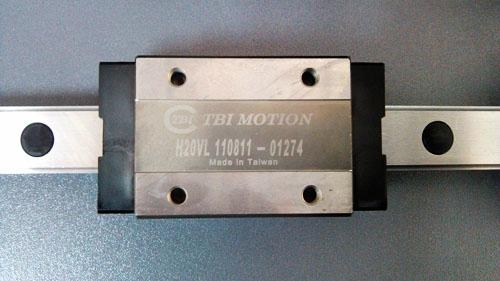

　　直线导轨系统通过滚动体实现运动部件的精准导向。其核心结构包含导轨、滑块、滚动体及保持架，采用四列式圆弧沟槽设计，使钢球或滚柱与导轨形成两点接触。这种设计不仅承受上下左右四方向负荷，更通过滚动摩擦将摩擦系数降低传统滑动导轨的1/50。以德国某直线导轨为例，其HG系列通过优化沟槽形状，使滚动体接触面积提升30%，显著增强了系统刚性。在自动化焊接设备中，直线导轨支撑焊枪实现±0.005mm的重复定位精度，确保焊缝轨迹的呈现。

　　The linear guide system achieves precise guidance of moving parts through rolling elements. Its core structure includes guide rails, sliders, rolling elements, and retainers. It adopts a four column circular arc groove design, allowing steel balls or rollers to form two-point contact with the guide rails. This design not only withstands loads in all directions, but also reduces the friction coefficient to 1/50 of traditional sliding guides through rolling friction. Taking a certain brand of linear guide rail in Germany as an example, the HG series optimizes the groove shape to increase the contact area of the rolling elements by 30%, significantly enhancing the system rigidity. In automated welding equipment, the linear guide rail supports the welding gun to achieve a repeat positioning accuracy of ± 0.005mm, ensuring the perfect presentation of the weld trajectory.

　　滚珠丝杠则专注于旋转运动与直线运动的能量转换。其工作原理是在丝杠与螺母的螺旋滚道内填充滚珠，通过回程装置形成闭合循环路径。当丝杠旋转时，滚珠的滚动运动将扭矩转化为轴向推力。某型号C3级滚珠丝杠在数控机床进给系统中，可实现0.001mm的小进给量，且反向间隙控制在0.003mm以内。这种特性使其在坐标镗床、磨床等精密加工领域占据主导地位，某航空零件加工中心通过采用预压滚珠丝杠，将孔系加工精度提升IT5级。

　　Ball screws focus on the energy conversion between rotational and linear motion. Its working principle is to fill the spiral raceway of the screw and nut with balls, and form a closed loop path through the return device. When the screw rotates, the rolling motion of the ball converts torque into axial thrust. A certain model of C3 grade ball screw can achieve a minimum feed rate of 0.001mm in the feed system of CNC machine tools, and the reverse clearance is controlled within 0.003mm. This characteristic makes it dominant in precision machining fields such as coordinate boring machines and grinders. A certain aviation parts machining center has improved the machining accuracy of hole systems to IT5 level by using pre pressed ball screws.

　　两者在性能维度形成鲜明对比：直线导轨的优势在于多轴联动能力与负载均衡，其模块化设计允许通过增减滑块数量应对不同工况；滚珠丝杠则以传动效率见长，某研究显示其机械效率可达92%，较梯形丝杠提升近40%。在寿命表现上，直线导轨因滚动体与导轨非直接接触，理论寿命可达5万以上；而滚珠丝杠通过双螺母预紧技术，有效延缓了轴向间隙的产生。

　　The two form a sharp contrast in terms of performance: the advantage of linear guides lies in their multi axis linkage capability and load balancing, and their modular design allows for different working conditions to be addressed by increasing or decreasing the number of sliders; Ball screws are known for their transmission efficiency, with a study showing that their mechanical efficiency can reach 92%, which is nearly 40% higher than trapezoidal screws. In terms of lifespan, linear guides have a theoretical lifespan of over 50000 kilometers due to the non direct contact between the rolling elements and the guide rails; The ball screw effectively delays the generation of axial clearance through double nut pre tightening technology.

　　应用场景的差异更凸显协同效应。在五轴联动加工中心中，直线导轨支撑工作台实现X/Y平面运动，滚珠丝杠则驱动Z轴主轴箱完成垂直进给，两者配合实现复杂曲面的精密加工。半导体制造领域的晶圆检测设备，同时采用真空兼容型直线导轨与陶瓷滚珠丝杠，在洁净室环境中达成纳米级定位精度。

　　The differences in application scenarios highlight the synergistic effects. In the five axis linkage machining center, the linear guide supports the worktable to achieve X/Y plane motion, while the ball screw drives the Z-axis spindle box to complete vertical feed. The two work together to achieve precision machining of complex surfaces. The wafer inspection equipment in the semiconductor manufacturing field adopts vacuum compatible linear guides and ceramic ball screws to achieve nanometer level positioning accuracy in clean room environments.

　　当前技术发展呈现融合趋势：某企业开发的智能导轨系统，集成压力传感器与温度补偿模块，通过物联网实时监测导轨状态；而滚珠丝杠的空心冷却技术，有效解决了高速运转时的热变形问题。这些创新使两者在高速加工中心的应用中，主轴转速突破3万转/分钟的同时，仍能保持0.01mm以内的加工精度。

　　The current technological development is showing a trend of integration: an intelligent guide rail system developed by a certain enterprise integrates pressure sensors and temperature compensation modules, and monitors the status of the guide rail in real time through the Internet of Things; The hollow cooling technology of ball screws effectively solves the problem of thermal deformation during high-speed operation. These innovations enable both to maintain machining accuracy within 0.01mm while the spindle speed exceeds 30000 revolutions per minute in the application of high-speed machining centers.

　　直线导轨与滚珠丝杠作为精密传动领域的双核驱动，正在通过材料科学、智能控制、制造工艺的协同创新，持续拓展工业自动化的技术边界。从数控机床到人形机器人，从3C电子到航空航天，这对黄金组合将继续支撑着现代制造业向更精密、更智能的方向演进。

　　Linear guides and ball screws, as dual core drives in the field of precision transmission, are continuously expanding the technological boundaries of industrial automation through collaborative innovation in materials science, intelligent control, and manufacturing processes. From CNC machine tools to humanoid robots, from 3C electronics to aerospace, this golden combination will continue to support the evolution of modern manufacturing towards greater precision and intelligence.
