直线导轨安装需要注意的几点!

来源:http://www.jngongrun.com/ 日期:2020-07-13 发布人:admin

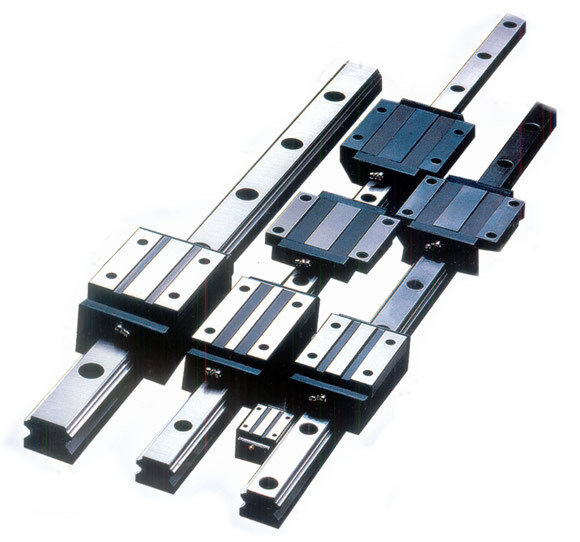

直线导轨应用的领域非常广泛,称呼名称也不少,台湾喜欢叫线性导轨、线轨、滑轨、线性滑轨等。但在国内的机械设备行业一般都直接叫直线导轨。一般用来做机械设备支撑和引导运动部件,根据指定的方向做往返直线运动。但是为了保证正常的运转,那么今天济南共润科技来给大家讲讲直线导轨安装需要注意的几个注意点!

Linear guideway is widely used in many fields and has many names. Taiwan likes to call it linear guideway, linear guideway, slide rail, linear guideway, etc. But in the domestic machinery and equipment industry is generally directly called linear guide. It is generally used to support and guide the moving parts of mechanical equipment, and make a round-trip linear movement according to the specified direction. But in order to ensure the normal operation, today Jinan co run technology to tell you about the installation of linear guide rail need to pay attention to several steps and points for attention!
(1) 在安装直线导轨前要仔细检查清理掉安装机械工作台面上的毛刺和污垢。因直线导轨上涂有防锈油,安装前请用洗净油将其擦拭干净后再安装。防锈油除掉后的基准面容易生锈,推荐涂抹粘度低的主轴用润滑油。
(1) Before installing the linear guide rail, carefully check and remove the burr and dirt on the working table of the installation machine. Since the linear guide rail is coated with antirust oil, please clean it with cleaning oil before installation. It is recommended to apply lubricating oil with low viscosity for spindle.
(2) 将直线导轨轻轻地放置于底座上后,不完全锁紧装配螺栓使直线导轨与安装面轻轻地靠紧。(底座的横向基准面要与直线导轨有标记线的一侧对上。请使用干净的装配螺栓来固定直线导轨。同时,在将装配螺栓插入直线导轨的安装孔时,要事先确认螺栓孔是否吻合。如果孔不吻合而强行拧入螺栓,则会降低精度。
(2) After the linear guide rail is gently placed on the base, the assembly bolt is not fully locked so that the linear guide rail and the installation surface are slightly close. (the transverse datum plane of the base shall be aligned with the side with the marked line of the linear guide rail. Please use clean assembly bolts to fix the linear guide. At the same time, when inserting the assembly bolt into the mounting hole of the linear guide, it is necessary to confirm whether the bolt holes match in advance. If the holes do not match and the bolt is forced in, the accuracy will be reduced.
(3) 按顺序将直线导轨的止动螺丝拧紧,使轨道与横向安装面紧靠。使用扭矩扳手,将装配螺栓按规定的扭矩拧紧。直线导轨装配螺栓的拧紧顺序是,从位置开始向轴端部按顺序拧紧,这样可获得稳定的精度。
(3) Tighten the stop screws of the linear guide rail in order to make the track close to the transverse mounting surface. Use a torque wrench to tighten the assembly bolts to the specified torque. The tightening sequence of the assembly bolts of the linear guide rail is from the central position to the end of the shaft in order to obtain stable accuracy.
(4) 其余的直线导轨也按同样的方法安装,直到安装全部完成。
(4) The other linear guide rails shall be installed in the same way until the installation is completed.
(5) 将孔盖打入装配螺栓孔,直到与直线导轨的顶面为同一平面为止。
(5) Drive the hole cover into the assembly bolt hole until it is in the same plane with the top surface of the linear guide.
