组成滚珠丝杆模组的配件具有哪些作用

来源:http://www.jngongrun.com/ 日期:2022-06-28 发布人:admin

滚珠丝杆模组和同步带直线模组在工厂里是常见的应用,而滚珠丝杆模组相比同步带直线模组,他的运动精度,承重推力,负载力等特点更加突出,因此,当我们的需求为精度要求非常高且运行平稳时,那么滚珠丝杆模组当是你的选择。

The ball screw module and the synchronous belt linear module are common applications in the factory. Compared with the synchronous belt linear module, the ball screw module has more prominent characteristics such as motion accuracy, load-bearing thrust and load-bearing force. Therefore, when our demand is that the precision is very high and the operation is stable, the ball screw module should be your choice.
那么,精度高,运行平稳的滚珠丝杆模组是有哪些强悍的配件组成的,而这些配件又承担着哪些重要角色,今天小编就带着这个问题给大家讲解一下。
So, what are the strong parts of the ball screw module with high precision and smooth operation, and what important roles these parts play? Today, Xiaobian will explain this problem to you.
滚珠丝杆直线模组主要由直线导轨、滚珠丝杆、铝合金型材、滚珠丝杆支撑座、马达、膜片联轴器、光电开光等部件组成。
The ball screw linear module is mainly composed of linear guide rail, ball screw, aluminum alloy profile, ball screw support seat, motor, diaphragm coupling, photoelectric switch, etc.

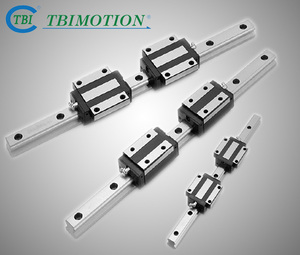

直线导轨又称滑轨、直线导轨,用于直线往复运动场合,拥有比直线轴承更高的额定负载,同时可以承担一定的扭矩,可在高负载的情况下实现高精度的直线运动。丝杆直线模组主要运用滚珠直线导轨,相比双轴心导轨具有更高的精度和负载,使滚珠丝杆模组能够运用在需要更高精度和更高负载的场合。
Linear guide rail, also known as slide rail and linear guide rail, is used for linear reciprocating motion. It has a higher rated load than linear bearing, and can bear a certain torque. It can realize high-precision linear motion under high load. The ball screw linear module mainly uses the ball linear guide rail, which has higher precision and load than the double axis guide rail, so that the ball screw module can be used in occasions requiring higher precision and load.
滚珠丝杆是将回转运动转化为直线运动,或将直线运动转化为回转运动。滚珠丝杠由螺杆、螺母、钢球、预压片、反向器、防尘器组成。它的功能是将旋转运动转化成直线运动,这是滚珠螺丝的进一步延伸和发展,这项发展的重要意义就是将轴承从滚动动作变成滑动动作。而且滚珠丝杆具有效率高、高精度、高速的特点,使它在精密设备,微调工业设备上得到广泛应用。
Ball screw converts rotary motion into linear motion, or converts linear motion into rotary motion. The ball screw is composed of screw, nut, steel ball, prepress, reverser and dustproof device. Its function is to convert rotary motion into linear motion, which is the further extension and development of ball screw. The significance of this development is to change the bearing from rolling motion to sliding motion. Moreover, the ball screw has the characteristics of high efficiency, high precision and high speed, which makes it widely used in precision equipment and fine-tuning industrial equipment.
铝合金型材
Aluminum alloy profile
铝合金型材具有铸造性能好,耐腐蚀,化学性能稳定,外型美观等特点。是组合机床和自动线较理想的基础动力部件动态性能好。滑台刚度高,热变形小,进给稳定性高,从而保证了加工状态下(负荷下)的实际精度。
Aluminum alloy profiles have the characteristics of good casting performance, corrosion resistance, stable chemical properties and beautiful appearance. It is an ideal basic power component for modular machine tools and automatic lines, with good dynamic performance. The sliding table has high rigidity, small thermal deformation and high feed stability, thus ensuring the actual accuracy in the processing state (under load).
以上就是为大家介绍的有关导轨丝杠的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务.http://www.jngongrun.com
The above is a detailed introduction to the guide screw. I hope it will help you If you have any questions, please contact us We will provide you with professional service http://www.jngongrun.com
