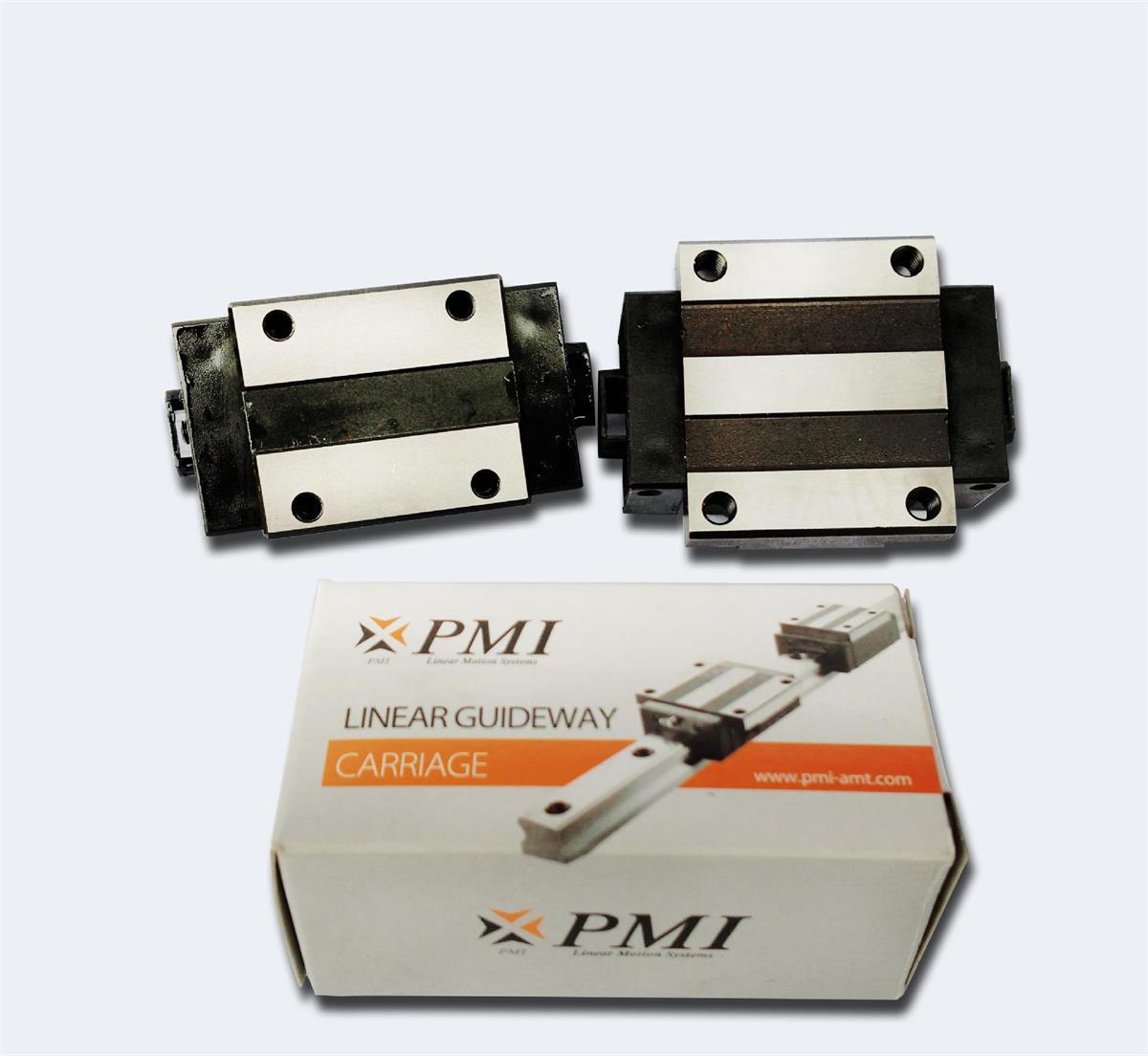

1、球保持器型滚动导轨
1. Ball holder type rolling guide
采用球保持器可钢球的相互摩擦。球保持器型LM滚动导轨具有钢球通过球保持器保持从而进行循环的结构。因此就了钢球之间的摩擦，使钢球得以均匀间隔排列来进行运动。 并且,在钢球循环部分和球保持器之间的空间中(润滑脂存储空间)蓄积的润滑脂会随着钢球的旋转施加到每个钢球和球保持器之间的接触表面,从而一直会在钢球表面形成油膜。因此,油膜不容易破裂。因而实现了低噪音、好音质、长期免维护和优异的高速性。
The ball retainer can eliminate the mutual friction of steel balls. The ball holder type LM rolling guide has a structure in which the steel ball is kept by the ball holder for circulation. Therefore, the friction between the steel balls is eliminated, so that the steel balls can be evenly spaced to move. In addition, the grease accumulated in the space between the ball circulation part and the ball holder (grease storage space) will be applied to the contact surface between each ball and the ball holder with the rotation of the ball, thus forming an oil film on the surface of the ball all the time. Therefore, the oil film is not easy to crack. Therefore, it realizes low noise, good sound quality, long-term maintenance free and excellent high-speed performance.

2、高精密滚珠丝杠
2. High precision ball screw
滚珠丝杠是一种进给丝杠，其滚珠在丝杠丝杆轴与螺母之间滚动。与传统滑动丝杠相比，本产品驱动扭矩..仅为其三分之一，非常为适合用于节省驱动电机功率。
The ball screw is a kind of feed screw, whose balls roll between the screw rod shaft and the nut. Compared with the traditional sliding lead screw, the driving torque of this product It is only one third of the total, which is very suitable for saving the power of the drive motor.
在符合 DIN 标准的滚珠丝杠中，承受载荷的滚珠在丝杠轴和螺母之间的滚动面切割中滚动，同时承受轴向载荷，沿着嵌入到螺母内的回珠器的凹槽移动相邻的滚动面，然后循环返回到载荷区域。因此，滚珠会进行无限循环的滚动运动。
In the ball screw conforming to DIN standard, the ball bearing the load rolls in the cutting of the rolling surface between the lead screw shaft and the nut, bearing the axial load at the same time, moving to the adjacent rolling surface along the groove of the ball returning device embedded in the nut, and then returning to the load area circularly. Therefore, the ball will roll in an infinite cycle.
以上就是为大家介绍的有关导轨丝杠的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务http://www.jngongrun.com
The above is a detailed introduction to the guide screw, and we hope it will be helpful to you. If you have any questions, please contact us. We will provide you with our attitude http://www.jngongrun.com
