在陶瓷雕铣机领域，高刚性导轨丝杆是实现高精度、率加工的核心部件。尤其是在加工高硬度、高脆性的陶瓷材料时，其性能直接决定了加工质量与设备寿命。本文将综合分析高刚性导轨丝杆的特性与作用，并探讨其技术发展趋势。

　　In the field of ceramic engraving and milling machines, high rigidity guide screw is the core component for achieving high-precision and high-efficiency machining. Especially when processing ceramic materials with high hardness and brittleness, their performance directly determines the processing quality and equipment life. This article will comprehensively analyze the characteristics and functions of high rigidity guide rail screws, and explore their technological development trends.

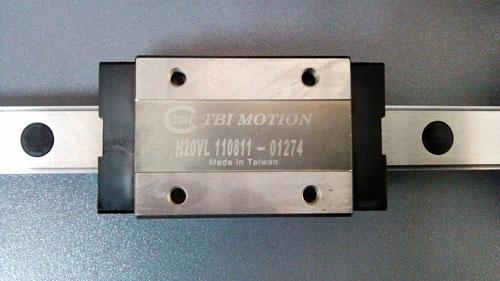

　　高刚性导轨丝杆采用 C3 研磨级滚珠丝杆和 P 级直线导轨，定位精度可达 0.008mm/300mm，重复定位精度控制在微米级。通过预紧技术和精密装配减少运动间隙，配合闭环控制系统实时补偿误差，确保加工轨迹的精准性。

　　The high rigidity guide rail screw adopts C3 grinding grade ball screw and P-type linear guide rail, with a positioning accuracy of 0.008mm/300mm and a repeated positioning accuracy controlled at the micrometer level. By using pre tightening technology and precision assembly to reduce motion clearance, coupled with a closed-loop control system to compensate for errors in real time, the accuracy of the machining trajectory is ensured.

　　在材质选择上，丝杆通常采用合金钢或碳素钢，导轨则使用表面硬化处理的铸铁或聚合物填充床身，兼具高刚性和吸振性。结构上，四导轨支撑系统可提升动态刚性 40%，有效抑制加工振动。

　　In terms of material selection, the lead screw is usually made of alloy steel or carbon steel, while the guide rail uses surface hardened cast iron or polymer filled bed, which combines high rigidity and vibration absorption. Structurally, the four rail support system can increase dynamic rigidity by 40% and effectively suppress machining vibrations.

　　导轨和丝杆表面经精密磨削和硬化处理，搭配不锈钢盔甲、风琴式防护罩双重设计，阻隔陶瓷粉尘侵蚀，延长使用寿命。特殊润滑系统（如自动油路供油）减少摩擦损耗，适应高粉尘工况。

　　The surface of the guide rail and screw rod is precision ground and hardened, paired with a dual design of stainless steel armor and accordion style protective cover to block ceramic dust erosion and extend service life. Special lubrication systems (such as automatic oil supply) reduce friction losses and adapt to high dust conditions.

　　通过滚珠循环技术和低摩擦系数材料，降低运动阻力，支持高速进给（可达 15m/min），同时减少热量积累。主轴动态平衡技术减少高速旋转时的振动，提升表面加工质量。

　　By using ball circulation technology and low friction coefficient materials, motion resistance is reduced, high-speed feed (up to 15m/min) is supported, and heat accumulation is reduced. Spindle dynamic balancing technology reduces vibration during high-speed rotation and improves surface machining quality.

　　高刚性结构可有效吸收切削力，避免因振动导致的崩边、碎裂等问题，尤其适合氧化锆、碳化硅等脆性陶瓷的精密加工。精密导轨丝杆配合高转速主轴（如 36000rpm），可实现低温切削和纳米级表面光洁度。

　　High rigidity structures can effectively absorb cutting forces and avoid problems such as edge breakage and fragmentation caused by vibration, especially suitable for precision machining of brittle ceramics such as zirconia and silicon carbide. The precision guide screw, combined with a high-speed spindle (such as 36000rpm), can achieve low-temperature cutting and nanoscale surface smoothness.

　　高刚性设计减少机床变形，降低研磨棒或金刚石刀具的异常磨损，提升刀具耐用性。防护系统防止陶瓷粉末侵入丝杆导轨内部，避免因粉尘堆积导致的精度劣化。

　　High rigidity design reduces machine tool deformation, lowers abnormal wear of grinding rods or diamond cutting tools, and enhances tool durability. The protective system prevents ceramic powder from entering the interior of the screw guide rail, avoiding accuracy degradation caused by dust accumulation.

　　高刚性导轨丝杆支持多轴联动（如五轴转台），满足复杂曲面加工需求，适用于航空航天、医疗器械等领域的异形陶瓷件生产。模块化设计允许快速调整导轨布局，适应不同尺寸和材料的加工任务。

　　The high rigidity guide rail screw supports multi axis linkage (such as a five axis turntable), meeting the requirements of complex surface machining and suitable for the production of shaped ceramic parts in aerospace, medical equipment and other fields. Modular design allows for quick adjustment of rail layout to accommodate machining tasks of different sizes and materials.

　　高速进给与快速换刀系统（如伞型刀库 12 秒换刀）缩短非加工时间，综合能耗低 2 度 / 小时。智能控制系统优化运动路径，减少空行程浪费。

　　High speed feed and rapid tool change system (such as umbrella shaped tool magazine with 12 second tool change) shorten non processing time and reduce comprehensive energy consumption to 2 degrees per hour. The intelligent control system optimizes the motion path and reduces the waste of empty travel.
