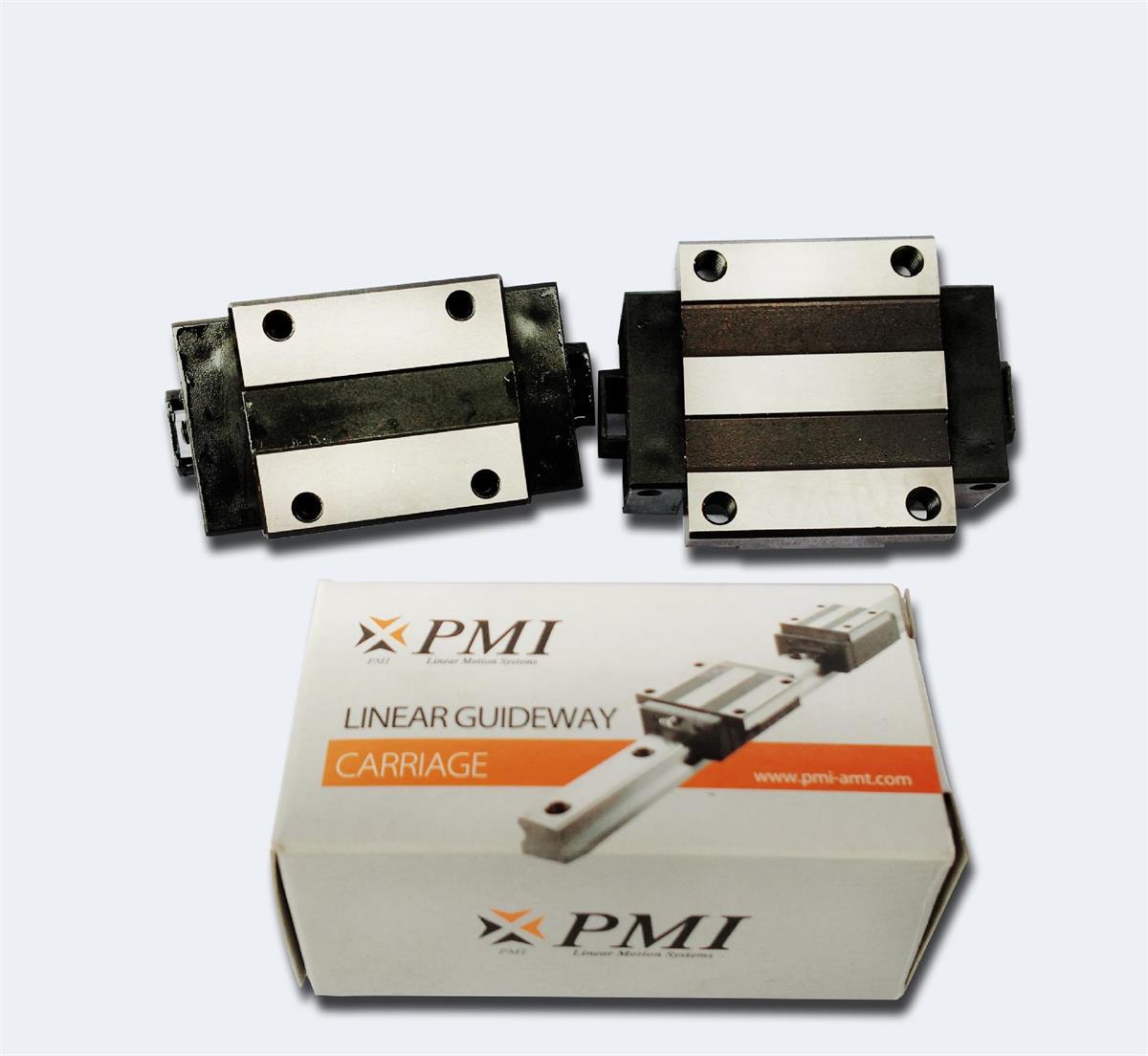

随着高精度导轨在工业自动化中的广泛应用，须掌握一定的安装技巧。为了保证从动侧滑轨和参考侧滑轨之间的平行度，没有横向定位装配面。导轨丝杠厂家为您解析。

With the wide application of high-precision guide rails in industrial automation, certain installation skills must be mastered. In order to ensure the parallelism between the driven side slide rail and the reference side slide rail, there is no transverse positioning assembly surface. The guide screw manufacturer will analyze for you.

一、使用安装基准进行安装。

1、 Use the installation datum for installation.

先用装配螺钉将导轨的底部基准面固定在床身台的底部装配面上，然后用虎钳将导轨的侧基准面压紧在床身台的侧装配面上，确定导轨的位置，用扳手按照一定的扭矩将导轨和导轨的固定面固定在床身台上。

First, fix the bottom datum plane of the guide rail on the bottom assembly surface of the bed table with the assembly screw, then press the side datum plane of the guide rail on the side assembly surface of the bed table with the vise, determine the position of the guide rail, and fix the guide rail and the fixed surface of the guide rail on the bed table with the wrench according to a certain torque.

二、从动侧导轨的安装

2、 Installation of driven side guide rail

1.直块规法

1. Straight block gauge method

将线性块规放在两个线性导轨之间，用千分尺校准线性块规，使其平行于参考侧滑轨的侧参考平面，然后根据线性块规校准从动侧滑轨。从移动导轨的一端开始校准，按照一定的扭矩依次锁紧装配螺丝。

Place the linear block gauge between the two linear guides, calibrate the linear block gauge with a micrometer so that it is parallel to the side reference plane of the slide rail on the reference side, and then calibrate the slide rail on the driven side according to the linear block gauge. Start calibration from one end of the moving guide rail, and lock the assembly screws in turn according to a certain torque.

2.移动平台方法

2. Mobile platform method

在测量平台上的参考侧固定两个滑块，但从动侧只安装一个滑块，导轨和滑块没有固定在底座和平台上。用千分尺测量从动侧滑块的侧面基准面，千分尺固定在从动侧滑块的顶面上。检查从动导轨的一端，按照一定的扭矩依次锁紧装配螺钉。

Two sliding blocks are fixed on the reference side of the measuring platform, but only one sliding block is installed on the driven side. The guide rail and sliding block are not fixed on the base and platform. Use a micrometer to measure the side reference plane of the sliding block at the driven side, and fix the micrometer on the top surface of the sliding block at the driven side. Check one end of the driven guide rail and lock the assembly screws in turn according to a certain torque.

3.遵循参考侧滑轨方法。

3. Follow the reference side slide method.

基准侧导轨的两个滑块和从动侧的一个滑块分别固定在平台上，然后从动侧导轨和床身及平台上的另一个导轨分别固定。根据参考侧滑轨移动平台。从滑轨的一端开始，同时确认移动侧导轨的滚动阻力，按照一定的扭矩依次锁紧装配螺丝。

The two sliding blocks of the reference side guide rail and one sliding block of the driven side are respectively fixed on the platform, and then the driven side guide rail and the bed and another guide rail on the platform are respectively fixed. Move the platform according to the reference side rails. Start from one end of the slide rail, confirm the rolling resistance of the guide rail at the moving side, and lock the assembly screws in turn according to a certain torque.

4.特殊工具法

4. Special tool method

用工具确定从动侧滑轨的位置，按照一定的扭矩顺序锁紧装配螺钉。

Use professional tools to determine the position of the slide rail on the driven side, and lock the assembly screws according to a certain torque sequence.

掌握导轨的正确安装方法，提高导轨的使用寿命和精度。所以提醒您，在安装该产品之前要提前对其各方面多加了解，更多事项就来我们网站http://www.jngongrun.com咨询!

Master the correct installation method of the guide rail, and improve the service life and accuracy of the guide rail. So I remind you to know more about the product in advance before installing it. For more information, please come to our website http://www.jngongrun.com consulting service
